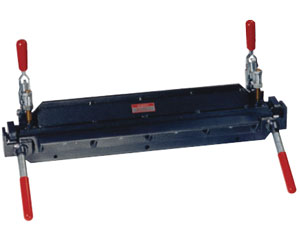

Sheet Metal Equipment l Heavy Duty Bending Brake
![]() |
This unique design permits simple or more complicated formings. Will open to 4” (10.2cm) facilitating insertion and removal of normally awkward shapes that other brakes cannot handle. Form boxes, covers, trays etc. a much needed tools for body shops or restoration work. Form your own rocker panels, trunk edges and door jams. The tools for small jobs as well as production runs. |
||
• Up to 18 ga. (1.21mm) Mild Steel full width, 12 ga. (2.64mm) in narrower widths |
Specifications |
Model 1824 |
Model 1840 |
Capacity, Mild steel |
#18ga. 1.22 mm |
#18ga. 1.22 mm |
Maximum Bend Length |
24" (Unlimited Throat) 610mm |
37" (Unlimited Throat) 940mm |
24"(2-1/2" Throat) 686mm |
40"(2-1/2" Throat) 106mm |
|
Maximum Cleareance |
4" (102mm) |
4" (102mm) |
Minimum Reverse Bend |
5/8" (16mm) |
5/8" (16mm) |
Hand Brake Shipping Wt. |
50lbs (23kg) |
90lbs (41kg) |
Floor Stands |
1824S |
1840S |
Floor stand Shipping Wt. |
40lbs (18kg) |
50lbs (23kg) |
